MTX-XC series Induced Draft FanMost of the fans are transmissions of couplings, and a few models are belt transmissions,
which are suitable for industrial boilers and kiln with output of 0.5-35 tons.
Any condition where the intake conditions are similar and the performance is suitable can be used.
The series of fans should be used to make the industrial boiler work in variable working conditions,
the induced draft fan can work in the high efficiency area, achieve the purpose of energy saving,
various high temperature and yin wind conditions, high temperature resistance up to 250 ° C,
special requirements can be customized to withstand high temperature 950 °C, corrosion resistant,
acid and alkali resistant. Fans are collected from the factory with motor, integral bracket,
water-cooled transmission group.
Before the induced draft fan, a dust removal device with a dust removal efficiency of not less
than 85% must be installed to reduce the dust content of the flue gas entering the fan,
reduce the wear and tear of the dust on the fan, and improve the use of the fan.
These blowers are produced for customers special requests.If the customer has other requirements
for pressure and air volume what is not included in the following list, please contact our
technicians to design and select the appropriate blower.
SWSI FANS - UP TO 900,000 CFM (1,529,100 M3/HOUR)
DWDI FANS - UP TO 1,500,000 CFM (2,548,500 M3/HOUR)
SINGLE-STAGE FANS - UP TO 120 INCHES W.G. (29,850 PA)
TWO-STAGE FANS - UP TO 240 INCHES W.G. (59,650 PA)
TEMPERATURE RANGE: UP TO 1,500°F (815°C)
MOTOR SIZES: UP TO 15,000 HP (11,185 KW)
ARRANGEMENTS: 1, 3, 7, 8
CONSTRUCTION (FAN CASING)
The casing is formed from the Q235 steel sheet to stainless steel SS316 or 304 with integral supports.
The grey/red/white/orange paint finish is applied after production, optional hot dip galvanization,
furnace paint or epoxy paint is available. On fan casing there is Aerodynmical round Inlet
Impellers are produced from Q235 Steel Sheet,stainless steel, ZAlSi7Mn Aluminium or FRP.
Static and dynamic vibration defects recovered after production according to appropriate ISO norm.
WHEEL SIZES : UP TO 160 INCHES (4,065 MM)
Direct driven,belt driven,coupling driven.
Inlet silencer or outlet silencer,flexible connecter,air shutter.
You can check below to select outlet angle that meet your demands.
View more details and technical sheet of our centrifugal fan ,kindly please contact us to get latest catalog.
Customer Cases---Centrifugal Blower Fan Environmental Project Worldwide
We've been working with many project in Uganda,Indonesia, Myanmar,Peru,Pakistan and
other countries for sewage treatment project,Steel plant boiler drafting project,
Hydro Electric Power Plant and tunnel&mining project.
We understand the harsh environments in which fans are used.
Motexo fans will meet and exceed the demands of your industry engineering,
infrastruction project, mining/tunnel project and other environment project.
Motexo Fan manufacture 300 series and more than 1,400 kinds of industrial fans.
All include heavy-duty designs for industrial applications.

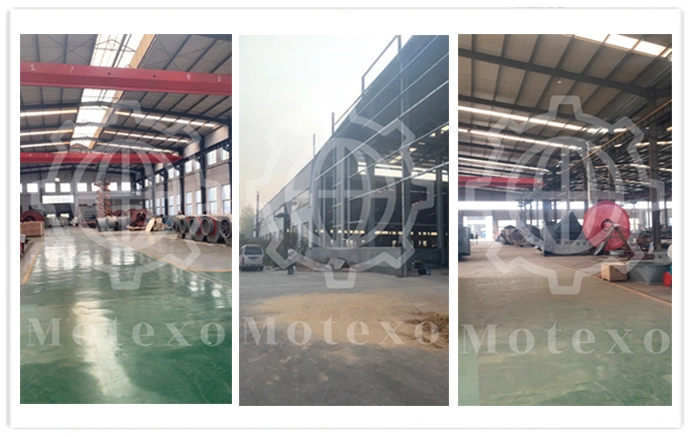

We have individual workshop for roots blower,centrifugal fans&blowers,
maintaining,axial fan,welding and assembling.
For more info please direct check our website--motexco.en.made-in-china.com
Not only we can produce large batch of small fan, we have processing capability to produce heavy
duty fans like above 3.5m high. We adopt the best technology in all aspects of industrial fan,
such as shot blasting, sand blasting, all the paint process, welding process, etc.
Stoving vanish looks brighter than water paint( ordinary painting color). It has more than 200 sets of fine, large and rare processing equipment, and has a high-tech resin sand casting production line.
Our equipment is generally used for power plants, environmental protection plants, coal plants, and so on.
It requires high technology and workmanship.
Centrifugal Fan Equiped with Frequency Control Panel/Soft Starter
