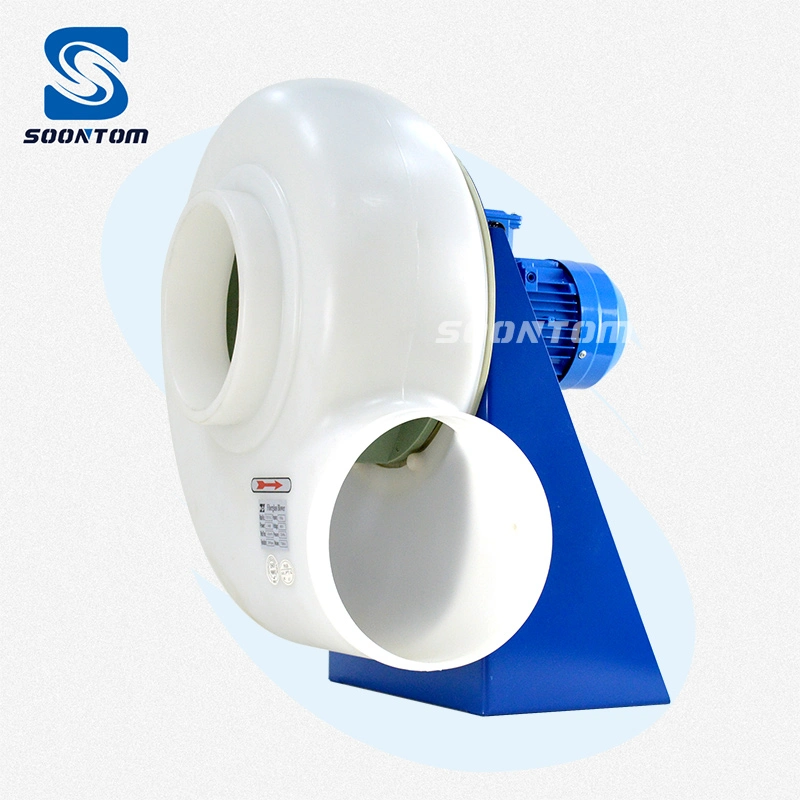

AC 200mm 230V Plastic Centrifugal Fans
Feature:
1.The spiral fan housing is made of polyethylene (PE) plastic, reversible and rotable discharge position by 45° increment for option. All fan is with 304 stainless steel mounting bolts and nuts.
2.Backward curved impeller is made of polypropylene (PP) plastic after strict dynamic balance.
3.100% copper wire motor, IP55, class F, B5 shape in 2 pole and 4Pole, single phase 220V/50Hz/60Hz, three phase 380V/50Hz/60Hz.
Application
Polypropylene Centrifugal Fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum temperature of 60°.
Suitable for applications where the extraction of corrosive fumes and gas: sulphuric acid, sulphurous acid,,nitric acid, hydrofluoric acid, hydrochloric acid, ammonia, soda,potassium hydroxide, methanol, propane, formol,benzene,formaldehyde.
Suitable for ventilation in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory and electronic workshop
Q. Are you a manufacturer or a trading company?
A. We are a factory
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Foshan, Guangdong, welcome to visit our factory
Q. What products do you produce?
A. Centrifugal fan, axial fan, portable ventilator, duct fan, exhaust fan, dust collector, ring blower, high& medium & low-pressure blower, misting fan, spray fan, etc, welcome to contact us to learn more details
Q. Can you offer sample?
A. Yes, we will prepare the normal sample for 5~7days, special customized need a little long time.
Q. What is your quality control system?
A. Each product needs to be inspected by QC before delivery.
Q. How long will it take to ship after order?
A. 20~30 days for one container
Q. If I have special require on color and logo, can you do that?
A. Yes, we can change the color as your requirements, also can put your logo on the products
Q. What is your payment terms?
A. T/T or LC at sight, 30% deposit in advance, the balance should be paid before shipping
| Size | 8inch/10inch/12inch/14inch |
| Material | Plastic |
| Voltage | 220V~420V,other voltage can be customized |
| Frequency | 50Hz/60Hz |
| Impeller | singal inlet backward curved blade |
| Color | as you like |
| Packing | 1pcs/box |
| Logo | we accept your requirements to customized |
| Sample | acceptable, 3-5days for normal product, 15~20days for special customized |
| Application | laboratory/fume hood/fume cupboard/chemical storehouse/electroplating factory/medicine factory |
| Payment | L/C or T/T, 30% depsot in advance, the balance should be paid before shipping |
| Delivery time | 20~30days for one container |
Feature:
1.The spiral fan housing is made of polyethylene (PE) plastic, reversible and rotable discharge position by 45° increment for option. All fan is with 304 stainless steel mounting bolts and nuts.
2.Backward curved impeller is made of polypropylene (PP) plastic after strict dynamic balance.
3.100% copper wire motor, IP55, class F, B5 shape in 2 pole and 4Pole, single phase 220V/50Hz/60Hz, three phase 380V/50Hz/60Hz.
Application
Polypropylene Centrifugal Fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum temperature of 60°.
Suitable for applications where the extraction of corrosive fumes and gas: sulphuric acid, sulphurous acid,,nitric acid, hydrofluoric acid, hydrochloric acid, ammonia, soda,potassium hydroxide, methanol, propane, formol,benzene,formaldehyde.
Suitable for ventilation in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory and electronic workshop
Technical Information
| Model (No.) | Size (mm) | Voltage (V) | Power (w) | Revolution (rpm) | Airflow (m3/h) | Pressure (pa) | Noise (dB) |
| FD200A2 | 200 | 230/50Hz | 180 | 2850 | 1100 | 450 | 65 |
| 200 | 42050Hz | 180 | 2850 | 1100 | 450 | 65 | |
| FD250A4 | 250 | 230/50Hz | 120 | 1450 | 1080 | 160 | 54 |
| 250 | 420/50Hz | 120 | 1450 | 1080 | 160 | 54 | |
| FD250A2 | 250 | 230/50Hz | 370 | 2850 | 2100 | 750 | 71 |
| 250 | 420/50Hz | 370 | 2850 | 2100 | 750 | 71 | |
| FD315A4 | 315 | 230/50Hz | 250 | 1450 | 2100 | 290 | 57 |
| 315 | 420/50Hz | 250 | 1450 | 2100 | 290 | 57 | |
| FD315A4 | 315 | 230/50Hz | 1100 | 2850 | 4260 | 1200 | 75 |
| 315 | 420/50Hz | 1100 | 2850 | 4260 | 12200 | 75 | |
| FD360A4 | 360 | 230/50Hz | 370 | 1450 | 2634 | 393 | 60 |
| 360 | 420/50Hz | 370 | 1450 | 2634 | 393 | 60 | |
| FD360A2 | 360 | 230/50Hz | 2200 | 2850 | 5268 | 1578 | 79 |
| 360 | 420/50Hz | 2200 | 2850 | 5268 | 83 | 79 |
Q. Are you a manufacturer or a trading company?
A. We are a factory
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Foshan, Guangdong, welcome to visit our factory
Q. What products do you produce?
A. Centrifugal fan, axial fan, portable ventilator, duct fan, exhaust fan, dust collector, ring blower, high& medium & low-pressure blower, misting fan, spray fan, etc, welcome to contact us to learn more details
Q. Can you offer sample?
A. Yes, we will prepare the normal sample for 5~7days, special customized need a little long time.
Q. What is your quality control system?
A. Each product needs to be inspected by QC before delivery.
Q. How long will it take to ship after order?
A. 20~30 days for one container
Q. If I have special require on color and logo, can you do that?
A. Yes, we can change the color as your requirements, also can put your logo on the products
Q. What is your payment terms?
A. T/T or LC at sight, 30% deposit in advance, the balance should be paid before shipping
